Wednesday, October 17, 2012
Tow Hitch
Nothing major, but decided it was time to put on the last assembly that would bring the Land Rover back to the configuration it was in when purchased. I wanted to keep the original pin-type fitting, partly for authenticity and partly as it's useful for recovery, plus a ball mount for versatility.
provided the complete kit, which included the bolts, nuts and a generous supply of galvanized washers. The mounting and backing plates were galvanized by 3 Bros. - they don't come from the supplier this way. A very nice consideration by 3 Bros..
The only issues during assembly: the galvanizing of the chassis had made the bolt holes too small by a small fraction, and had to be drilled out. A larger problem was that the holes of the mounting plate and those of the chassis didn't line up - the top right was out of position. This had to be corrected for the bolt to go through.
Below, the kit, with tow ball masked off in preparation for priming and painting. The ball/pin casting is zinc plated.
Just a view of the casting with self-etch primer so the paint will adhere to the zinc, and after painting.
On the left, the original pin-only fitting (welded to mounting plate, in turn welded to rear cross member when the previous owners made their own replacement cross member).
The thick backing plate has to be placed in location first (to prevent pull-through of the bolts when under load), then the nuts, and then the bolts put through from the outside. There isn't room for lock washers. A check for tightness will be needed now and then. The hitch bolts will need to be longer if double nuts are to be used.
The final assembly.
provided the complete kit, which included the bolts, nuts and a generous supply of galvanized washers. The mounting and backing plates were galvanized by 3 Bros. - they don't come from the supplier this way. A very nice consideration by 3 Bros..
The only issues during assembly: the galvanizing of the chassis had made the bolt holes too small by a small fraction, and had to be drilled out. A larger problem was that the holes of the mounting plate and those of the chassis didn't line up - the top right was out of position. This had to be corrected for the bolt to go through.
Below, the kit, with tow ball masked off in preparation for priming and painting. The ball/pin casting is zinc plated.
Just a view of the casting with self-etch primer so the paint will adhere to the zinc, and after painting.
On the left, the original pin-only fitting (welded to mounting plate, in turn welded to rear cross member when the previous owners made their own replacement cross member).
The Workshop Manual illustrations (supplied by 3 Bros.) for attaching the tow assembly. While the double-nut method worked well for the smaller upper bolts, it wasn't possible for the lower, due to the flange on the rear cross member (see next photo).
The thick backing plate has to be placed in location first (to prevent pull-through of the bolts when under load), then the nuts, and then the bolts put through from the outside. There isn't room for lock washers. A check for tightness will be needed now and then. The hitch bolts will need to be longer if double nuts are to be used.
The final assembly.
Monday, October 8, 2012
Workhorses
When walking back to the Land Rover today, I noticed this tableau. Probably 50 years here between the two trucks. I wonder if either of these has a chance of still being around in another 50 years?
Thursday, October 4, 2012
Fall Colours
When for a drive at lunch today. Fall colours just coming in, and will only last a week or two at best. Always a nice time of year.
(click on the picture for full-size view)
(click on the picture for full-size view)
Tuesday, October 2, 2012
Thermostat and Housing
The Land Rover had been running too hot ever since it went back on the road after the restoration. Everything tested ok, the coolant sytem had been flushed, thermostat worked, radiator worked, brakes weren't dragging, timing was good, etc., but temps were consistently about 20C too hot. Nothing drastic, but not normal, and something I wanted to correct.
Further testing of the old thermostat showed that it could stick shut from time to time. A look at the coolant system design also appeared to show that the large Kodiak heater hoses were likely bringing a lot of coolant directly back into the engine, coolant which doesn't pass through the radiator.
At first I tried to find a new thermostat, to see if that would cure the problem, and while I eventually found one, they are obviously very hard to come by and subsequently quite expensive. This rarity might pose problems in the future. That, and the Kodiak hose question, made me look at the later thermostats used on Series 2a and Series 3 vehicles.
Those designs (there are two types) looked as if they might have some design advantages over the original, and after some more research, the late 2a/3 type looked best. It's thermostat has a 'skirt' that blocks a large part of the flow back into the engine, the rest then going through the radiator. It also has a 'cap' that, when the engine is cold, appears to stop flow to the radiator more thoroughly and direct more coolant directly back into the engine until the engine has warmed up.
The earlier thermostat, which didn't seem as effective, is a 'waxstat', with the same permanently open hole at the top as with the bellows type, which means more coolant going immediately back into the engine without passing through the radiator. The open thermostat doesn't do that much to divert flow to the radiator except lack of resistance down the radiator channel, which is offset from the main channel.
The newer housing installs without a problem onto the older type cylinder head. I installed an 82C thermostat (the other option is 74C), went for a long drive, and the engine, once at full operating temp, stayed at 82C. Right on the money. It would seem the problem is solved.
Below, the original 1960 housing. Note how the radiator return-hose empties directly back into the engine. It still does with the new housing, but the thermostat and housing design directs far more coolant to the radiator, and appears much better able to cope.
On the left, the original housing and (rare) bellows-type thermostat. On the right, the new housing with skirted thermostat and gasket in place. (Parts are sitting on spray can lids, in case you're wondering.)
On the left, the skirted thermostat and outlet housing. On the right, an earlier waxstat outlet. Note the differences in the openings. The inset image is just there to show the waxstat shape, as I don't have one here.
New housing and thermostat in place. It would seem much simpler to change thermostats with this design, too.
Have re-routed the heater return-hose to the side of the engine away from the exhaust manifold, too, in case that helps cooling by keeping the hose away from a hotter part of the engine.
Further testing of the old thermostat showed that it could stick shut from time to time. A look at the coolant system design also appeared to show that the large Kodiak heater hoses were likely bringing a lot of coolant directly back into the engine, coolant which doesn't pass through the radiator.
At first I tried to find a new thermostat, to see if that would cure the problem, and while I eventually found one, they are obviously very hard to come by and subsequently quite expensive. This rarity might pose problems in the future. That, and the Kodiak hose question, made me look at the later thermostats used on Series 2a and Series 3 vehicles.
Those designs (there are two types) looked as if they might have some design advantages over the original, and after some more research, the late 2a/3 type looked best. It's thermostat has a 'skirt' that blocks a large part of the flow back into the engine, the rest then going through the radiator. It also has a 'cap' that, when the engine is cold, appears to stop flow to the radiator more thoroughly and direct more coolant directly back into the engine until the engine has warmed up.
The earlier thermostat, which didn't seem as effective, is a 'waxstat', with the same permanently open hole at the top as with the bellows type, which means more coolant going immediately back into the engine without passing through the radiator. The open thermostat doesn't do that much to divert flow to the radiator except lack of resistance down the radiator channel, which is offset from the main channel.
The newer housing installs without a problem onto the older type cylinder head. I installed an 82C thermostat (the other option is 74C), went for a long drive, and the engine, once at full operating temp, stayed at 82C. Right on the money. It would seem the problem is solved.
Below, the original 1960 housing. Note how the radiator return-hose empties directly back into the engine. It still does with the new housing, but the thermostat and housing design directs far more coolant to the radiator, and appears much better able to cope.

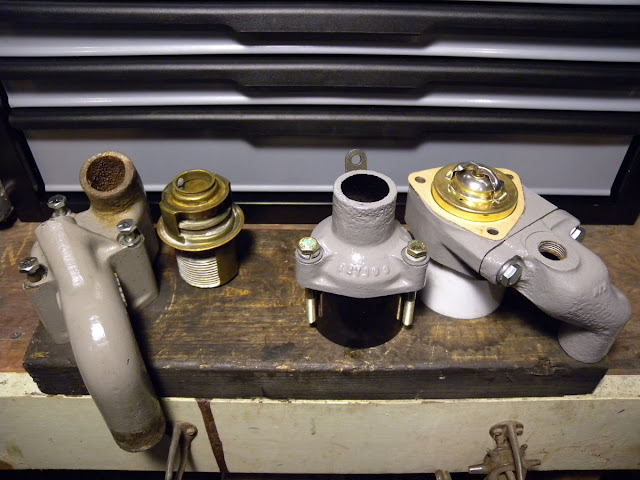

On the left, the original housing and (rare) bellows-type thermostat. On the right, the new housing with skirted thermostat and gasket in place. (Parts are sitting on spray can lids, in case you're wondering.)
On the left, the skirted thermostat and outlet housing. On the right, an earlier waxstat outlet. Note the differences in the openings. The inset image is just there to show the waxstat shape, as I don't have one here.
New housing and thermostat in place. It would seem much simpler to change thermostats with this design, too.
Have re-routed the heater return-hose to the side of the engine away from the exhaust manifold, too, in case that helps cooling by keeping the hose away from a hotter part of the engine.
Just needing the fan shroud to go back on, once another test drive confirms there are no leaks.
Finally, after a long test drive, fan shroud re-installed, and heater hose attached to center bolt of the valve cover with an aviaton hose clamp, to stop the hose touching the ignition wire or valve cover.
